Gewebekompensatoren vs. Metallkompensatoren: Was ist besser?

Die Wahl zwischen einemGewebedehnungsfugeund einMetall-DehnfugeEs geht nicht einfach darum, welches Produkt robuster ist oder welches Material die höchste Temperatur aushält. Die richtige Wahl hängt davon ab, wie sich das System bewegt, unter welchem Druck es arbeitet, welches Medium es durchströmt, welche Größe der Kanal oder das Rohr hat und wie viel Last auf die angeschlossenen Geräte übertragen werden kann.

Im Allgemeinen sind Gewebekompensatoren in großen Niederdruck-Kanalsystemen, die Heißluft, Abgas oder Rauchgas transportieren, sehr effektiv, während Metallbälge üblicherweise für unter Druck stehende Rohrleitungen und Prozesssysteme gewählt werden, bei denen Druckdichtigkeit und mechanische Festigkeit von entscheidender Bedeutung sind.

Der folgende Vergleich erläutert, wo die einzelnen Konstruktionen ihre besten Ergebnisse liefern und welche Faktoren vor der Festlegung einer Dehnungsfuge berücksichtigt werden sollten.

Gewebe-Dehnungsfuge vs. Metall-Dehnungsfuge auf einen Blick

Der wichtigste Unterschied: Kanalsystem vs. Rohrleitungssystem

Eine der einfachsten Möglichkeiten, den Auswahlprozess zu beginnen, besteht darin, festzustellen, ob die Kompensatorverbindung in einem großen Industriekanal oder in einem unter Druck stehenden Rohrleitungssystem installiert wird.

Anichtmetallische Gewebedehnungsfugeeignet sich besonders gut für große Luft- und Gasleitungen. Diese Systeme finden sich häufig in Kraftwerken, Zementwerken, Stahlwerken, Industrieöfen, Staubabscheideanlagen, Verbrennungsanlagen und Abgasanlagen.

Das Prozessmedium ist üblicherweise gasförmig, und der Druck ist im Vergleich zu druckbeaufschlagten Prozessleitungen oft relativ niedrig.

Metallische Kompensatoren nutzen dünne, geformte Metallfalten, um Flexibilität zu gewährleisten und gleichzeitig den Druck zu halten. Metallische Kompensatoren finden breite Anwendung in Dampf-, Prozessrohrleitungs-, petrochemischen, chemischen und anderen technischen Systemen, in denen der Druck eine wichtige Konstruktionsanforderung darstellt.

Dieser Unterschied in der Anwendungsumgebung erklärt viele der Leistungsunterschiede zwischen den beiden Technologien.

1. Druckfähigkeit

Der Druck ist oft der erste Faktor, der eine textile Dehnungsfuge von einem metallischen Faltenbalg unterscheidet.

Gewebedehnungsfugen

Textilgelenke sind primär für Niederdruckkanäle vorgesehen. Ihr flexibles Element besteht aus beschichteten Geweben, Verstärkungsschichten, Dichtungsmembranen und Isolierung anstelle eines druckführenden Metallbalgs.

Sie sind häufig anzutreffen in:

• Abgaskanäle
• Verbrennungsluftsysteme
• Industrieabluftkanäle
• Lüftereinlass- und -auslasssysteme
• Ofenrohrleitungen
• Staubabsaugungssysteme
• Anlagen zur Luftreinhaltung

Metall-Dehnfugen

Ein Metallbalg kann so konstruiert werden, dass er deutlich höheren Innendrücken standhält. Seine gewundene Metallwand ist so ausgelegt, dass sie sowohl Flexibilität als auch Druckbeständigkeit gewährleistet.

Dadurch eignen sich metallische Dehnungsfugen für Anwendungen wie:

• Dampfleitungen
• Prozesspipelines
• Öl- und Gassysteme
• Chemische Verarbeitung
• Wärmetauscheranschlüsse
• Druckgassysteme

Auswahlregel:Wenn ein signifikanter Systemdruck gehalten werden muss, sollten in der Regel zunächst Metallbälge geprüft werden. Gewebekompensatoren sind kein direkter Ersatz für druckfeste Metallbälge.

2. Bewegungsfähigkeit

Durch Bewegung werden Stoffdesigns besonders attraktiv.

Ein Textilgürtel kann sich über eine relativ große Fläche verformen. Dadurch kann er erhebliche axiale, laterale und winklige Verschiebungen ausgleichen, ohne auf mehrere geformte Metallfalten angewiesen zu sein.

Bei großen Kanalsystemen, in denen die Wärmeausdehnung in mehr als eine Richtung erfolgt, kann dies die Anordnung der Dehnungsfugen erheblich vereinfachen.

Typische Bewegungsarten

• Axiale Kompression
• Axiale Ausdehnung
• Seitlicher Versatz
• Winkelbewegung
• Kombinierte multidirektionale Bewegung

Auch metallische Bälge können diese Bewegungen aufnehmen, allerdings muss die Balgkonstruktion speziell darauf ausgelegt sein.

For example, larger lateral displacement may require a universal metallic expansion joint with multiple bellows and a center pipe rather than a single bellows element.

Therefore, when large lateral or combined movement is required in a low-pressure duct, afabric expansion jointis often the more practical design.

3. Reaction Forces and Spring Rate

This is an important engineering difference that is often overlooked during purchasing.

A metallic bellows behaves like a mechanical spring. When it is compressed, extended or laterally displaced, it generates reaction forces that must be considered in the piping design.

These forces may influence:

• Anchors
• Guides
• Equipment nozzles
• Pipe supports
• Duct supports

Fabric expansion joints generally produce much lower spring forces because the flexible textile element is considerably softer than formed metal bellows.

For large duct systems connected to fans, furnaces or lightweight structural components, reducing these reaction loads can be a major advantage.

4. Vibration Isolation

Fans, blowers, turbines and other rotating equipment can transmit vibration into connected ductwork.

A flexible fabric connector can help isolate some of this vibration because the textile belt does not create the same rigid mechanical path as solid ductwork.

This makes fabric expansion joints especially useful around:

• Industrial fans
• Blowers
• Air handling equipment
• Exhaust systems
• Large combustion-air ducts

Metal expansion joints can also accommodate vibration, but the movement amplitude, frequency and expected cycle life must be considered carefully in the bellows design.

For high-cycle vibration, neither product should be selected solely from a general product specification. Actual vibration data should be supplied to the manufacturer.

5. Large Rectangular Ducts

Large rectangular ductwork strongly favors fabric construction in many industrial systems.

Consider an exhaust duct measuring several meters across. Producing a metallic flexible element for such a large cross-section requires substantial metal fabrication and careful control of corner stresses.

A rectangular fabric joint can use a flexible belt installed around the perimeter of the duct, making very large dimensions more practical.

This is whyrectangular fabric expansion jointsare frequently seen in:

• Power station ducting
• Cement kiln systems
• Steel plant exhaust lines
• Large furnace ducts
• Flue gas treatment equipment

For these applications, size alone can significantly influence the final choice.

6. Temperature: Which One Is Better?

It is incorrect to assume that metal is always better at high temperature or that fabric automatically has a lower usable process temperature.

The two systems manage temperature differently.

Metal Expansion Joint Temperature

Metallic bellows temperature capability is determined primarily by the selected alloy, design pressure, material strength at temperature and expected fatigue life.

Stainless steels and nickel-based alloys can be selected for elevated-temperature service.

Fabric Expansion Joint Temperature

A high-temperature fabric expansion joint may use several thermal layers rather than exposing one flexible membrane directly to the process gas.

A typical construction may include:

• Hot-face protection
• Insulation layers
• Reinforcement fabric
• Gas sealing membrane
• Outer protective cover

The insulation package can reduce the temperature reaching the external sealing materials.

Therefore, ahigh temperature fabric expansion jointshould be selected based on the full temperature gradient through the joint, not simply on the temperature rating of one fabric.

7. Flue Gas and Exhaust Applications

Hot flue gas and exhaust systems are among the most common applications for non-metallic designs.

These installations often combine:

• Large duct dimensions
• Low internal pressure
• High operating temperature
• Thermal cycling
• Lateral movement
• Fan vibration

That combination closely matches the strengths of fabric expansion joints.

Typical installations include:

• Boiler exhaust ducts
• Industrial furnaces
• Gas turbine exhaust systems
• Cement process ducts
• Incinerator systems
• Flue gas treatment equipment

For customized designs, BSTFLEX manufacturesNon Metallic Fabric Expansion Jointsfor industrial ducting, hot-air, flue-gas and exhaust applications.

8. Chemical and Corrosive Environments

Corrosion resistance cannot be judged simply by comparing “fabric” with “metal.”

The actual materials must be compared.

A metallic expansion joint may use corrosion-resistant stainless steel or nickel alloy when aggressive media are present.

A fabric expansion joint may use chemical-resistant barrier layers such as PTFE-coated textiles or other compatible membrane systems.

Selection should consider:

• Gas composition
• Acid concentration
• Alkaline components
• Moisture
• Condensation
• Operating temperature
• Cleaning chemicals

Condensation is particularly important in flue-gas systems because chemical attack may become more severe when corrosive gases condense on cooler joint surfaces.

9. Flow Velocity and Abrasion

Neither fabric nor metallic bellows should necessarily be exposed directly to severe turbulent flow or abrasive particles without protection.

A fabric joint may use:

• Internal flow liner
• Baffle
• Insulation pillow
• Abrasion-resistant hot-face layer

A metallic bellows may also require an internal liner to prevent erosion, turbulent excitation or direct impingement on the convolutions.

This means gas velocity, dust loading and flow direction should always be included in the expansion joint specification.

10. Installation Space

Available space can strongly affect the decision.

A fabric joint can often absorb considerable lateral movement within a relatively short flexible span.

Metallic systems can also accommodate large displacement, but may require more complex arrangements such as universal joints, hinged joints or gimbal configurations depending on movement direction.

However, there are also piping layouts where a compact metallic bellows is the more appropriate design.

Installation space should therefore be considered together with pressure and movement rather than as an isolated factor.

11. Weight and Structural Loading

Fabric flexible elements are generally lighter than comparable large metallic assemblies.

This difference becomes increasingly important as duct dimensions increase.

Lower component weight can reduce loads during:

• Transportation
• Handling
• Installation
• Maintenance
• Replacement

In very large rectangular duct systems, this can be an important practical advantage.

12. Replacement and Maintenance

Fabric expansion joints are often designed with replaceable flexible belts.

If the surrounding steel frames remain serviceable, maintenance may involve replacing the flexible element rather than removing the complete assembly.

This can be useful in large duct installations where removing welded steel frames would create significant shutdown work.

Metal expansion joints generally require replacement or repair of the metallic bellows assembly when the bellows itself becomes damaged.

The actual maintenance cost depends on system design, accessibility, joint size and failure mode.

13. Expected Service Life

There is no meaningful universal statement such as “metal lasts longer than fabric.”

Service life depends on whether the joint was correctly designed for the application.

A fabric joint can fail prematurely because of:

• Excess temperature
• Chemical attack
• Abrasion
• Incorrect installation
• Overextension
• Unexpected movement
• Condensation

A metal bellows can fail because of:

• Fatigue
• Corrosion
• Stress corrosion cracking
• Excess pressure
• Squirm
• Torsion
• Excess movement
• Flow-induced vibration

Correct engineering matters more than simply choosing one material category over another.

Which Expansion Joint Is Better for Different Applications?

When Should You Choose a Fabric Expansion Joint?

Afabric expansion jointshould be seriously considered when most of the following conditions are present:

• The system is a duct rather than a pressure pipeline.
• The medium is air, exhaust gas or flue gas.
• Operating pressure is relatively low.
• The duct cross-section is large.
• Significant lateral movement must be absorbed.
• Several movement directions occur simultaneously.
• Reaction loads on adjoining equipment should be minimized.
• Fan or blower vibration is present.
• A rectangular or irregular geometry is required.

This is the typical application envelope for anon metallic expansion joint.

When Should You Choose a Metal Expansion Joint?

A metallic expansion joint should normally be evaluated first when:

• The system is pressurized piping.
• Steam or process fluid is being transported.
• Pressure containment is critical.
• The applicable piping design requires metallic construction.
• High mechanical strength is required.
• The system is designed according to metallic bellows engineering standards.

Metallic bellows are engineered pressure-containing components and should be designed around system pressure, temperature, movement, material, fatigue life and piping loads.

Non Metallic vs Metallic Expansion Joint: A Better Selection Method

Instead of asking, “Which expansion joint is better?” engineers should ask, “Which expansion joint architecture matches this system?”

Use the following sequence.

Step 1: Identify the System

Is it a large duct or pressurized pipe?

Step 2: Define Pressure

Specify normal pressure, design pressure and whether the system operates under positive or negative pressure.

Step 3: Define Temperature

Provide both continuous operating temperature and maximum excursion temperature.

Step 4: Separate Every Movement

List axial compression, axial extension, lateral displacement and angular movement individually.

Step 5: Identify the Medium

Specify hot air, exhaust gas, flue gas, steam, liquid or process chemical.

Step 6: Check Flow Conditions

Include gas velocity, dust loading, abrasive particles and turbulence.

Step 7: Evaluate Equipment Loads

Determine how much reaction force can safely be transferred to fans, duct supports, equipment nozzles and anchors.

Step 8: Review Installation Geometry

Confirm shape, dimensions, flange arrangement and available face-to-face installation length.

A Practical Example: Large Flue Gas Duct

Consider a large rectangular flue-gas duct installed downstream of industrial combustion equipment.

The system has:

• Large rectangular dimensions
• Hot gas
• Low operating pressure
• Axial thermal growth
• Lateral movement
• Fan vibration

In this situation, a fabric expansion joint is often an efficient choice because it can combine large cross-section capability, multidirectional flexibility and low reaction forces.

Now consider a high-pressure steam line operating at elevated temperature.

Although thermal movement still exists, the system requires reliable pressure containment. A metallic bellows engineered for the piping pressure, temperature and movement is generally the appropriate technology.

These examples demonstrate why the operating system must determine the expansion joint type.

What Information Should Be Sent to the Manufacturer?

For either metallic or fabric designs, the quality of the engineering recommendation depends heavily on the information supplied.

For a custom fabric joint, BSTFLEX recommends providing:

• Duct width and height or diameter
• Joint face-to-face length
• Operating temperature
• Maximum temperature
• Positive or negative pressure
• Process medium
• Axial compression
• Axial extension
• Lateral movement
• Angular movement
• Gas velocity
• Dust or particulate content
• Chemical composition
• Existing flange details
• Drawings or photographs
• Required quantity

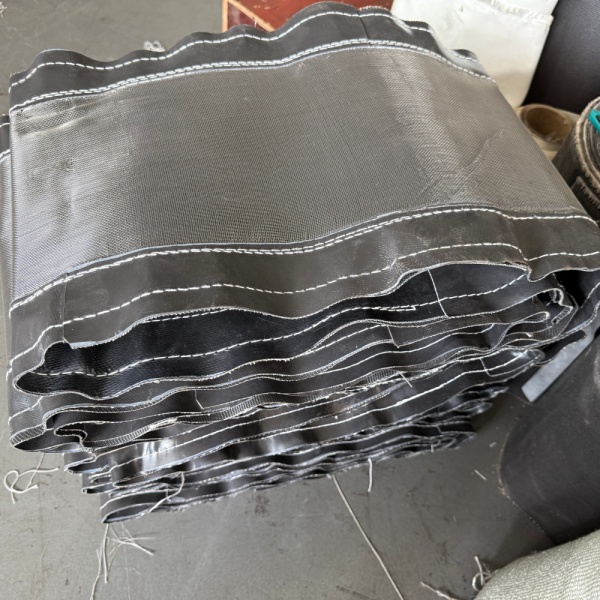

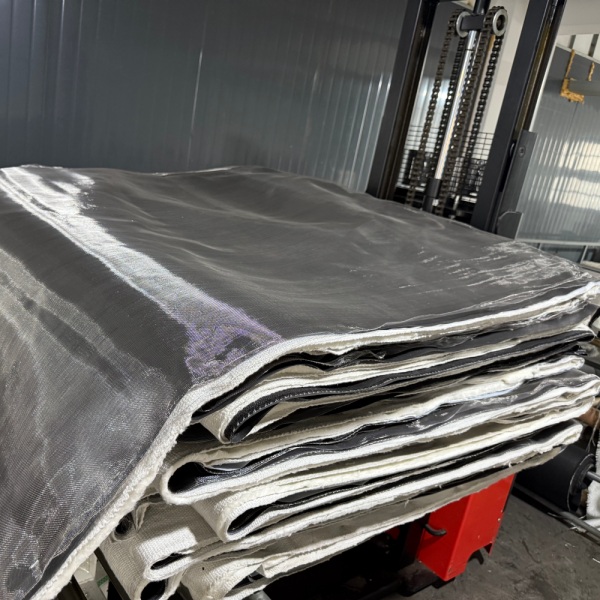

Fabric Expansion Joint Solutions from BSTFLEX

BSTFLEX manufactures custom non-metallic expansion joints for industrial hot-air, exhaust and flue-gas ducting systems.

Depending on operating conditions, flexible constructions can incorporate technical fabrics, coated fiberglass, PTFE-based sealing layers, high-temperature insulation and protective components.

Round, rectangular and application-specific configurations can be manufactured according to customer drawings and operating data.

See theBSTFLEX Nichtmetallische Gewebe-Dehnfugefür kundenspezifische Fertigungsoptionen.
